Drilling Mud Mix and Reclaiming Systems

/, 600ltr/min, Mud Mix and Reclaiming Systems/Drilling Mud Mix and Reclaiming Systems
Drilling Mud Mix and Reclaiming Systems2017-11-24T22:13:55+00:00

Project Description

  • Drilling Mud Mix and Reclaiming Systems
  • Mud Mixing System Mud Reclaiming System

Drilling Mud Mix and Reclaiming Systems

All Drilling Mud Mix and Reclaiming Systems are manufactured to meet the required capacity. Used components are of high standards to mee the HDD need for long service life and low down-time.
Benefits of these systems are:
– Easy operation
– Room to stora pallet of Bentonite
– Small footprint size
– Silent, all electrically driven
– Use of latest screen technonolgy, pretension panel screens
– High Flow durable hydro cyclones

– more smart features will be sent upon request.

Al Drilling Mud Mix and Reclaiming Systems to customer’s wishes and capacities.

MR3E Mix & Reclaimer General Specifications

Mix Delivery: 300-400 ltr/min.
Reclaim Delivery: 300-400 ltr/min.
Engine: Electric.
Pumps: 1x US 250Style with mechanical seal.
1x Tsurumi Submersible pump
Connections Mixer: 2″ inlet,  and 2″ outlet.
Connections Reclaimer: 3″ inlet.
Painting: high gloss finish paint in customer RAL color.

We customize our equipment.

Contact us

  • Drilling Mud Mix and Reclaiming Systems
  • Drilling Mud Mix and Reclaiming Systems
  • Drilling Mud Mix and Reclaiming Systems

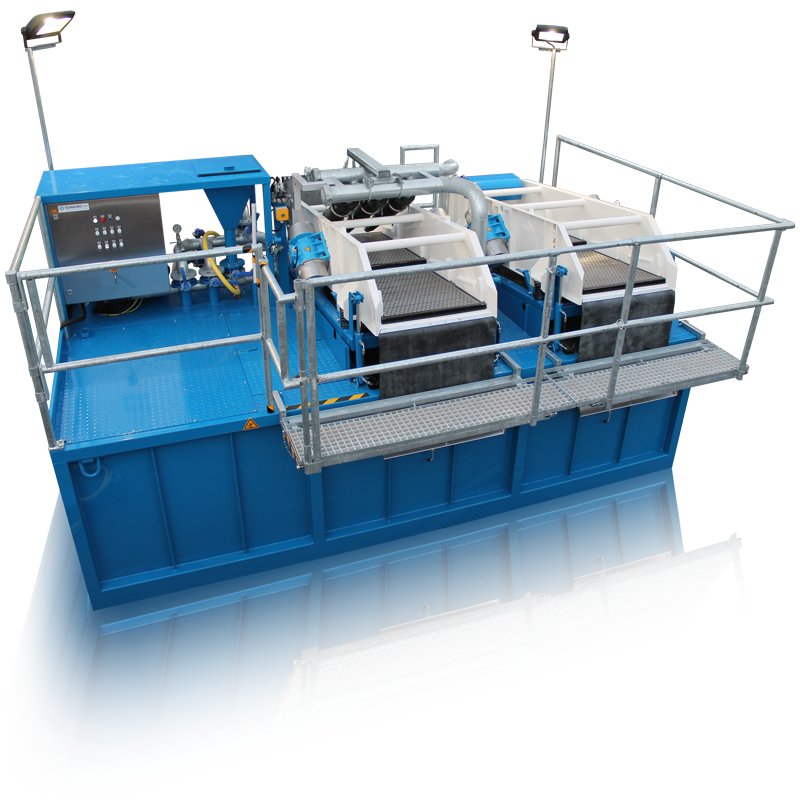

MR6E Mix & Reclaimer General Specifications

Mix Delivery: 500 ltr/min.
Reclaim Delivery: 600 ltr/min.
Engine: 2x Electric.
Pumps: 2x US 250Style with mechanical seal.
Connections Mixer: 2″ inlet,  and 3″ outlet.
Connections Reclaimer: 4″ inlet.
Painting: high gloss finish paint in customer RAL color.

We customize our equipment.

Contact us
