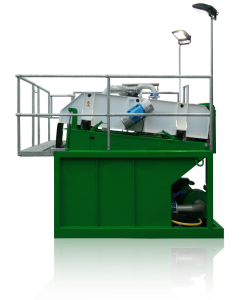

R6E Drilling Mud Reclaiming System

Any Dupagro Mud Reclaiming System is manufactured to meet the required capacity. The R6E Drilling Mud Reclaiming System circulation Pump is of international known standards and made of wear resistant Hard Iron Cast Steel with most important a long life mechanical shaft seals with backup packing. This chosen pump has proved itself the last 20 years.

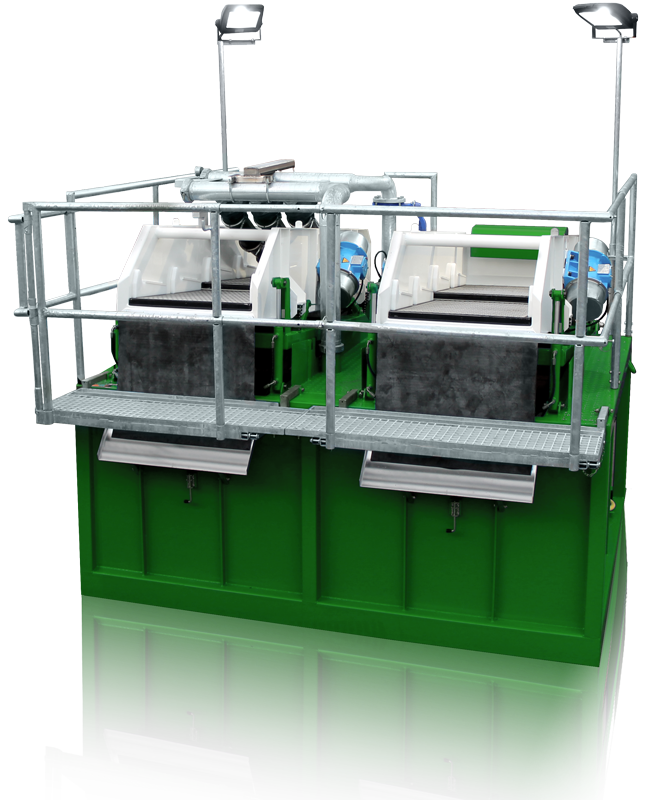

The R6E Mud Reclaiming System  has a fluid circulation tank with most important built up two single deck mud shakers, one being the primary shale shaker and the second one as final mud cleaner. So, the biggest positive feature while operating the R6E is the easy access to each pretension panel screen. The centrifugal circulation pump pumps to the high flow hydro cyclones, a tough Tsurumi submersible pump transfers the cleaned drilling bentonite to your Mixing System. The maximum capacity of the R6E is up to 600 ltr/min with 20% solids in.

Any R6E Drilling Mud Reclaiming System will be modified to customer’s wishes and capacities.

R6E General Specifications

Delivery: 600 ltr/min.
Engine: Electric.
Circulation Pump: US 250Style centrifugal pedestal pump with mechanical seal.
Transfer Pump: Tsurumi
Connections: 4″ inlet and 3″ outlet.
Painting: high gloss finish paint in customer RAL color.

We will customize our R6E Drilling Mud Reclaiming System.
