Project Description

M3 Series Mud Mixing System

All Dupagro Mixing Systems are manufactured to meet the required capacity.
Mixers will match HDD rig mounted high pressure pumps up to 300 ltr/min. Any Mud Mixing System is available with several brands of Diesel Engines, check options below. All Mixing Equipment Pumps are of international known standards and are made of wear resistant Hard Iron Cast Steel, have long life mechanical shaft seals with backup packings.

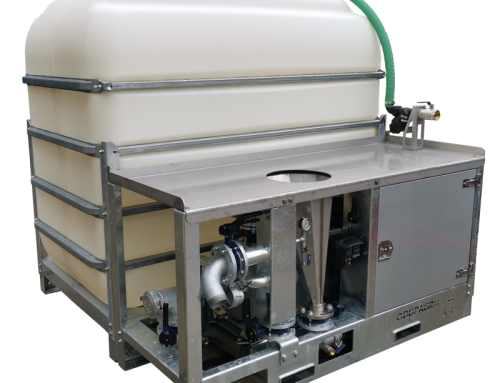

The M3 Mud Mixing System has a 3.000 ltr PE (Polyethylene) UV Stabilized tank on a base frame, the mixer area comes with work deck, hopper and below the engine, pump, venturi system, pipes and valves.
The use of a high shear venturi system, a special tank eductor nozzle pipe and high speed flow circulation guarantees a rapid homogeneous bentonite/water mixture.

Al systems can be modified to customer’s wishes and capacities.
Send your specific requirements so we can match it.

M3D General Specifications

Delivery: 300 ltr/min.
Engine: Lombardini, Hatz, Kubota or Perkins.
Pump: US Style with mechanical seal.
Mix tank: 3.000 ltr.
Storage tank: 3.000 ltr. (optional)
Connections: 2″ inlet and 2″ outlet.
Painting: high gloss finish paint in customer RAL color.

We will customize our Mud Mixing System.
