Our on- site equipment is specially designed to ensure the safety for your drilling equipment.

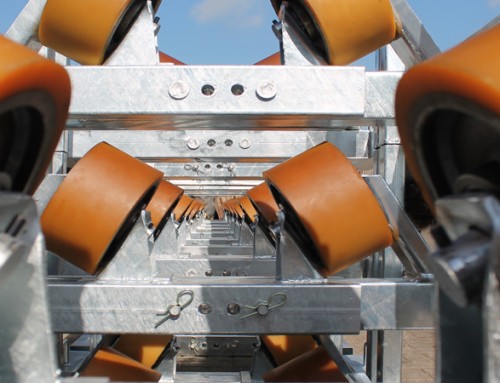

Dupagro Pipe Rollers
All our adjustable pipe support systems (pipe rollers) are a high quality product and has proven to be spot on in durability as well as usability in the field. These pipe roller assemblies are designed to support HDPE-, steel-, and cast iron pipe. All the pipe rollers have life time greased, heavy duty ball bearings.
ANY OF THESE PIPE ROLLERS CAN BE ADJUSTED TO SUIT YOUR REQUIREMENTS!
We also supply pipe cradles.
| PIPE ROLLER SPECIFICATIONS | ||||
| Type | Maximum Load (t) | Pipe Diameter (mm) | Dimentions LxBxH (cm) | Weight (kg) |
| PR2 | 2,5 | 150 – 550 | 60 x 60 x 20 | 26 |
| PR6 | 6 | 300 – 915 | 110 x 80 x 40 | 100 |
| PR16S | 16 | 700 – 1230 | 150 x 70 x 60 | 380 |
| PR16L | 16 | 700 – 1430 | 175 x 77 x 65 | 426 |
| PR20 | 20 | 800 – 1600 | 200 x 100 x 75 | 750 |
Dupagro Mud Filters
This Mud Filter will prevent any unwanted solids into your high pressure drill pump, drill rods, drill heads or reamers. It is to be placed after the Mud Mixing System and before the High Pressure Mud Pump. A 18 mesh (1000 micron) flat panel screen will prevent any larger solids to flow through.
Each filter has a smart rinse option which can be used to clean it quickly.
The pressure gauges on inlet and outlet will give a clear sign when the filter is clogged.
| Drilling Mud Filter Specifications | ||||
| Type | Maximum Flow (ltr/min) | Screen | Dimentions LxBxH (cm) | Weight (kg) |
| MF1K | 1.000 | 14-18 mesh | +/- 130 x 60 x 120 | +/- 380 |
| MF2K | 2.000 | 14-18 mesh | +/- 160 x 80 x 150 | +/- 560 |
Dupagro Drill Rod Break Out Systems
Our Break out units are designed for fast and easy operation when making up or breaking out pipe and tool joints.
The units 2344, 6184 and 8184 are equipped with Drill Pipe Wrenches to provide the greatest strength while minimizing marks on pipe surfaces.
The 11800 has two Visetongs and the 118 a Visetong and Tongvise combination. The heat-treated Special Chains on these tools are easily adjusted by adding or reducing the chain sections. The smallest ones have a manual operated hydraulic system, the larger size have their own hydraulic power pack.
Click on the type or capacity to view full details.
| TYPE | Max. Nm | Hydraulics | Mtr Hoses | Skid size | Dry weight |
| 2344 | 16000 | Manual | 5 | 80x60x50 | 90 |
| 6184 | 32000 | Manual | 5 | 125x60x60 | 130 |
| 8184 | 65000 | Manual or Powerpack | 5 | 125x80x80 | 300 |
| 11800 | 121000 | Powerpack | 5 | 150x90x90 | 700 |
| 118 | 120000 | Powerpack | 5 | 180x170x150 | 1.000 |
Click here to view all our break out systems & wrenches.
Gearench Drill Pipe Wrenches, Tongs & Valve Wheel Wrenches
Tsurumi Submersible Pumps
Many electrical submersible pumps are available online, if you need assistance finding the pump you need send us an email to info@dupagro.com.
Please include: current (Hz), fluid type (and solids %), required flow combined with required pressure.
We are here to assist!
Click on the type or capacity to view full details.
Or Click here to view more details on each pump type.
| TYPE | FLOW | PRESSURE | APPLICATION | ||
| Minimum (ltr/min) | Maximum(ltr/min) | Minimum (bar) | Maximum(bar) | ||
| KTV Series | 300 | 950 | 0,1 | 3,5 | Spring water, Rain water, Ground water, Sand carying water |
| KTD Series | 500 | 800 | 0,1 | 2,1 | Sludge, Slurry, Liquids containing sand mud and or bentonite |
| KTZ Series | 400 | 2200 | 0,2 | 4,8 | Spring water, Rain water, Ground water, Sand carrying water |
| KRS Series | 1800 | 10000 | 0,2 | 3,3 | Spring water, Rain water, Ground water, Sand carrying water |
| GPN Series | 1600 | 5000 | 0,4 | 3,3 | Sludge, Slurry, Liquids containing sand mud and or bentonite |
| Please be aware that maximum flow is not to be combined with maximum pressure, check pump details to find the flow charts for each type! | |||||
