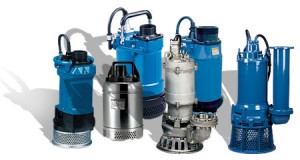

Tsurumi Submersible Pumps
Tsurumi Submersible Pumps consists of a wide range all designed for tough applications. Therefore Tsurumi Submersible Pumps these are the perfect choice for the Horizontal Directional Drilling Industry; compact, durable, all with Dual Silicon Carbide Mechanical seals in a separate oil bath making these pumps “run-dry”. Check below the most common used Tsurumi Submersible Pumps for the HDD.
Check the Full Tsurumi Submersible Pump Catalog:

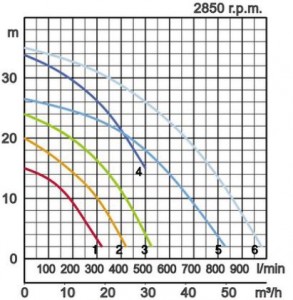

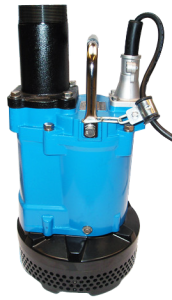

KTV Drainage Pump Series
KTV and KTVE pumps are a Light-weight construction, for ease of portability. NO agitator head.
Fluid type: Spring water, Rain water, Ground water, Sand carying water.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solids dia. Mm | |
| KTV2-8 | 1 | 50 | 0,75 | 15,0 | 320 | 6 | |
| KTV2-15 | 2 | 50 | 1,5 | 20,0 | 420 | 8,5 | |
| KTV2-22 | 3 | 50 | 2,2 | 24,0 | 525 | 8,5 | |
| KTV2-37H | 4 | 50 | 3,7 | 33,8 | 500 | 8,5 | |
| KTV2-37 | 5 | 80 | 3,7 | 26,5 | 830 | 8,5 | |
| KTV3-55 | 6 | 80 | 5,5 | 35,0 | 980 | 8,5 | |

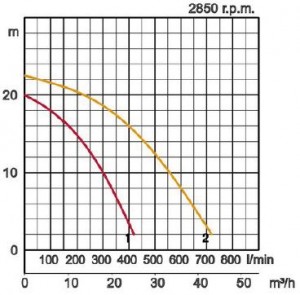

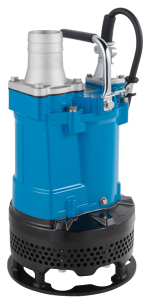

KTV Slurry Pump Series
KTV slurry pumps are powerfull sludge/mud pump using the KTV pumps as a base. Features are wear resistance, durability and extra light weight. WITH agitator head.
Fluid type: Sludge, Slurry, Liquids containing mud.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solid dia. Mm | |
| KTV2-50 | 1 | 50 | 2,0 | 20,0 | 420 | 10 | |
| KTV2-80 | 2 | 80 | 3,0 | 22,5 | 720 | 10 | |

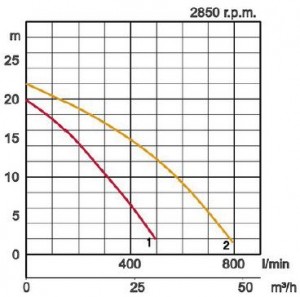

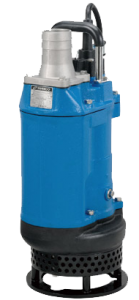

KTD Series
Tsurumi KTD Series Submersible Pump is a cast iron made, heavy-duty slurry pump. WITH agitator head.
Fluid type: Sludge, Slurry, Liquids containing sand mud and/or bentonite.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solid dia. Mm | |
| KTD22 | 1 | 50 | 2,0 | 19,9 | 496 | 8,5 | |
| KTD33 | 2 | 80 | 3,0 | 22,0 | 794 | 8,5 | |

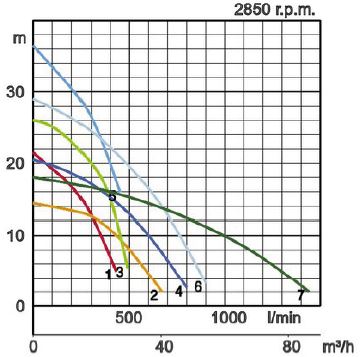

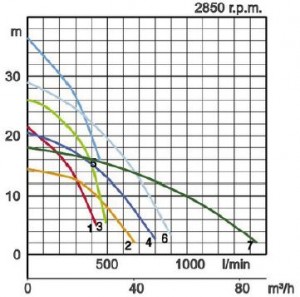

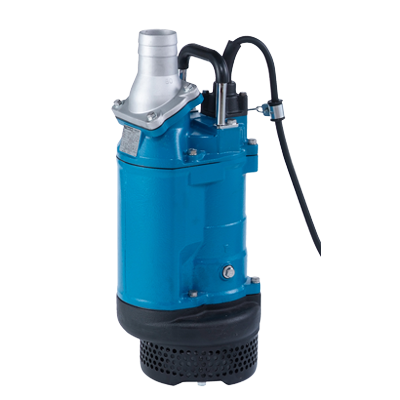

KTZ Series
Construction pumps capable of converting from high head to high volume. NO agitator head.
Fluid type: Spring water, Rain water, Ground water, Sand carrying water.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solid dia. Mm | |
| KTZ21.5 | 1 | 50 | 1,5 | 21,5 | 430 | 8,5 | |
| KTZ31.5 | 2 | 80 | 1,5 | 14,4 | 670 | 8,5 | |
| KTZ22.2 | 3 | 50 | 2,2 | 26,0 | 500 | 8,5 | |
| KTZ32.2 | 4 | 80 | 2,2 | 20,5 | 800 | 8,5 | |
| KTZ23.7 | 5 | 50 | 3,7 | 36,5 | 450 | 8,5 | |
| KTZ33.7 | 6 | 80 | 3,7 | 29,0 | 900 | 8,5 | |
| KTZ43.7 | 7 | 100 | 3,7 | 18,0 | 1440,0 | 8,5 | |
| KTZ35.5 | 8 | 80 | 5,5 | 32,0 | 1100,0 | 8,5 | |
| KTZ45.5 | 9 | 100 | 5,5 | 22,5 | 1740,0 | 8,5 | |
| KTZ47.5 | 10 | 100 | 7,5 | 40,0 | 1400,0 | 12,0 | |
| KTZ67.5 | 11 | 150 | 7,5 | 31,0 | 2030,0 | 20,0 | |
| KTZ411 | 12 | 100 | 11,0 | 48,5 | 1440,0 | 12,0 | |
| KTZ611 | 13 | 150 | 11,0 | 32,5 | 2440,0 | 20,0 | |

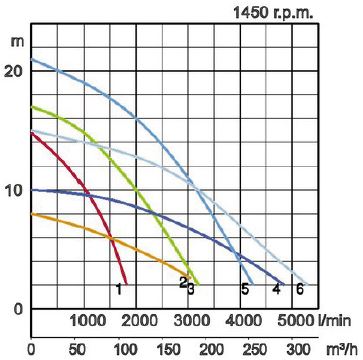

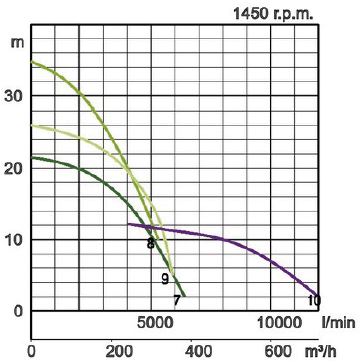

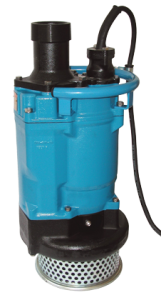

KRS Series
High volume pumping applications. NO agitator head.
Fluid type: Spring water, Rain water, Ground water, Sand carrying water.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solid dia. Mm | |
| KRS-43 | 1 | 100 | 3,0 | 14,8 | 1820 | 12 | |
| KRS-63 | 2 | 150 | 3,0 | 8,0 | 3250 | 15 | |
| KRS-65.5 | 3 | 150 | 5,5 | 17,0 | 3180 | 20 | |
| KRS-85.5 | 4 | 200 | 5,5 | 10,0 | 4850 | 20 | |
| KRS2-69 | 5 | 150 | 9,0 | 21,0 | 4250 | 20 | |
| KRS2-89 | 6 | 200 | 9,0 | 15,0 | 5300 | 30 | |
| KRS815 | 7 | 200 | 15,0 | 21,5 | 6400 | 25 | |
| KRS822 | 8 | 200 | 22,0 | 34,8 | 5300 | 25 | |
| KRS822L | 9 | 200 | 22,0 | 26,0 | 5900 | 25 | |
| KRS1022 | 10 | 250 | 22,0 | 12,1 | 12000 | 25 | |

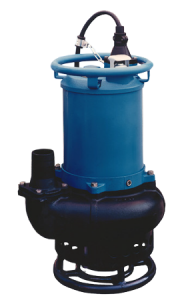

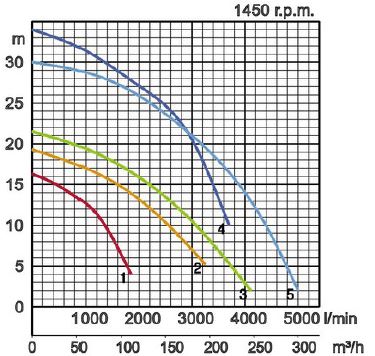

GPN Series
Heavy Duty pumping applications. WITH agitator head.
Fluid type: Sludge, Slurry, Liquids containing sand mud and or bentonite.
| Model | Colour code curve | Bore mm | Motor output kW | Head max. m | Capacity max. l/min | Max. solid dia. Mm | |
| GPN35.5 | 1 | 80 | 5,5 | 16,3 | 1900 | 30 | |
| GPN411 | 2 | 100 | 11,0 | 19,3 | 3250 | 30 | |
| GPN415 | 3 | 100 | 15,0 | 21,5 | 4110 | 30 | |
| GPN422 | 4 | 100 | 22,0 | 34,0 | 3700 | 30 | |
| GPN622 | 5 | 150 | 22,0 | 30,0 | 5000 | 30 | |
