TSURUMI KTV2-15 Drainage Pump

Part Number: SPTKTV2150

Description

Tsurumi KTV2-15Tsurumi Submersible Pumps


Tsurumi’s expertise has developed a new series which combines high tech materials for maximum durability, yet lightweight and portable. This Tsurumi KTV2-15 pump is equally suited for construction site dewatering as well as installation into facilities.

KTV Sectional Setup

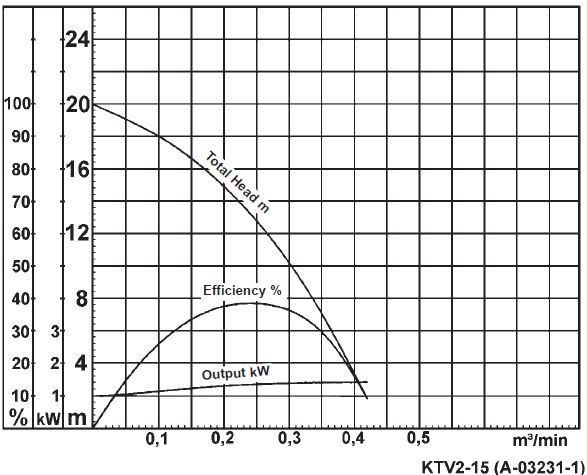

Tsurumi KTV2-15 Flow Chart



















Tsurumi KTV2-15 Details


Classification
Electric submersible pump
Protection class IP68
Depth of submersion max. 50m
Semi-vortex impeller
Max. solid handling 8,5mm
Suitable for rain water, ground water, sand
carrying water
Shaft Seal
Double mechanical seal in oil bath
additional lubrication by oil lifting device
Primary Seal: silicon carbide on silicon carbide
Secondary Seal: silicon carbide on carbide
Electric Motor
Dry-type submersible induction motor,
Insulation class E, 2 poles, 2870 r.p.m.
Direct on line
Voltage: 400V, 50Hz, 3-phase
Power input: 2,04kW
Power output: 1,50kW
Nominal current: 3,3A
Start current: 19,0A
Bearings
Shielded ball bearings, maintenance-free
Materials
Impeller: FCD700 (EN-GJS-700-2)
Casing: Synthetic rubber
Motor frame: Aluminium alloy casting
Shaft: SUS403 (EN-X6Cr13)
Electric Cable
20m H07RN-F 4Cx1,5mm2
Discharge Connection
2” (50mm) hose coupling
Weight
20,5 kg (dry weight of the pump without cable)
Motor Protection
Circle thermal protector
(snap-action bi-metal device)

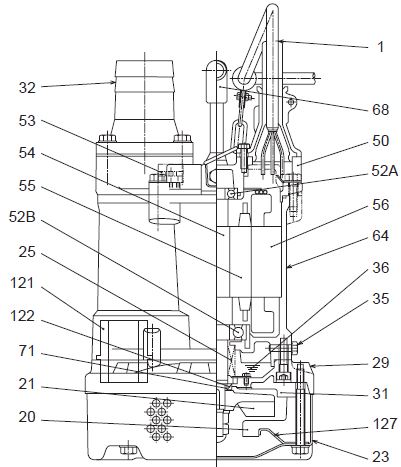

Tsurumi KTV2-15 Sectional Drawing

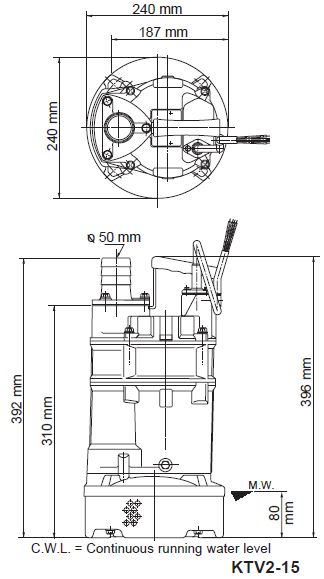

Tsurumi KTV2-15 Sectional DrawingTsurumi KTV2-15 Dimensions

No. Description Qty. Remarks   No. Description Qty. Remarks
1 Cabtyre Cable 1 H07RN-F 54 Shaft 1 SUS403 (EN-X6Cr13)
20 Pump Casing 1 Rubber 55 Rotor 1
21 Impeller 1 FCD700 (EN-GJS-700-2) 56 Stator 1
23 Strainer 1 SPCC 64 Motor Frame 1 ADC12
25 Mechanical Seal 1 H-20T 68 Handle 1 SPC + NBR
29 Oil Casing 1 ADC12 71 Shaft Sleeve 1 SUS304 (EN-X5CrNi18-10)
31 Liner 1 Rubber 121 Packing 1 Rubber
32 Hose Coupling 1 ADC12 122 V-Ring 1  NBR
35 Oil Plug 1 SUS304 (EN-X5CrNi18-10) 127 Retainer 1  SPCC
36 Lubricant 1 Turbine Oil (ISO VG32)
50 Motor Bracket 1 ADC12
52A Upper Bearing 1 6204ZZC3
52B Lower Bearing 1 6305ZZC3
53 Motor Protector
