DA1344 Drill Pipe Tong for 1″-6″ OD
PETOL DRILL PIPE TONGS are designed for making up and breaking out drill pipe, casing, and pneumatic drills on light rigs. These tongs are furnished as original equipment by rig manufacturers because of their ease in handling, quick application, and ability to withstand rugged use.
[box]No time to search individual part(s) you requrie? Just add this wrench to your request and mention the items you require (see below) in the “Note box” one the checkout of the request form[/box]

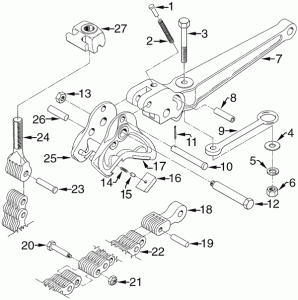

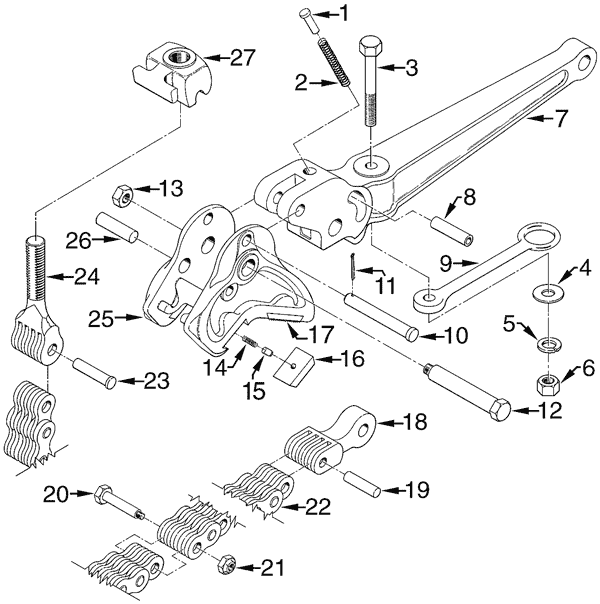

Drill Pipe Tongs | ||
| KEY NO | ITEM DESCRIPTION | NO. REQ’D. |
| 1 | SPRING GUIDE | 1 |
| 2 | SPRING | 1 |
| 3,4,5,6 | HANGER BOLT & NUT ASSEMBLY | 1 |
| 7 | HANDLE | 1 |
| 8 | SPRING PIN BUSHING | 1 |
| 9 | HANGER | 1 |
| 10,11 | SPRING PIN W/COTTER | 1 |
| 12,13 | JAW BOLT & NUT | 1 |
| 14 | INSERT KEY SPRING | 4 |
| 15 | INSERT KEY | 4 |
| 16 | BLANK INSERT | 2 |
| 17 | INSERT | 2 |
| 18 | MASTER LINK | 1 |
| 19 | MASTER LINK CHAIN PIN | 1 |
| 20,21 | SPLICE BOLT & NUT | as req’d. |
| 22 | SPECIAL CHAIN ONLY | 1 |
| 23 | CHAIN SCREW PIN | 1 |
| 24 | CHAIN SCREW | 1 |
| 25 | JAW | 1 |
| 26 | MASTER LINK HANDLE PIN | 1 |
| 27 | CHAIN SCREW NUT | 1 |
| NOTE: PARTS MAY VARY SLIGHTLY AMONG SIZES. | ||
